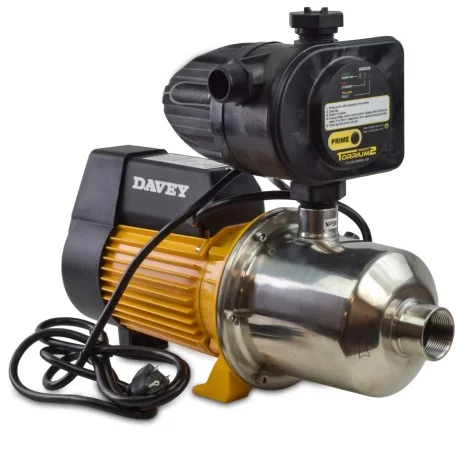

Davey BT series pressure booster pump is comprised of a robust and compact centrifugal pump with stainless steel volute and an intelligent Torrium2 controller, designed to produce constant selected pressure in a variety of water supply options – municipal, well, tank, etc.
Features:
- Stainless steel pump volute offers better durability and corrosion resistance over plastic and cast iron alternatives
- Pump permits larger flow rates due to larger internal pathways
- No moving control parts inside the water pathways means better reliability and no blockages
- Integrated dry run protection, over-current & overheat protection, auto-restart
- Torrium2 controller offers advanced monitoring and controls, while offering flexibility in discharge – top, side or both
- Built-in check valve
- Includes stainless steel hose for easy system connection
- Very low noise levels of ~54dB
Technical Specifications:
- Voltage: 220-240V
- Main frequency: 60Hz
- Type of cable plug: 6ft power cord with standard NEMA 6-15P power plug
- Nominal Duty: Flow 20 gpm @ 20 psi
- Maximum boost: 78 psi
- Maximum flow rate: 25 GPM
- Maximum system pressure: 100 psi
- Minimum pressure setting: 15 psi
- Maximum pressure setting: 80 psi
- Cut-out (low-flow) rate: 0.26 GPM
- Maximum ambient temperature: 120°F
- Maximum liquid temperature: 158°F
- Maximum suction lift: 25ft
- IP rating: IP55
- Outlet size: 1″ Male NPT
- Inlet size: 1″ Female NPT
- Weight: 27.3 lbs
- Dimensions (L x W x H): 13.8″ x 7.56″ x 17.40″
Warranty:
3 years from the date of installation
