Description

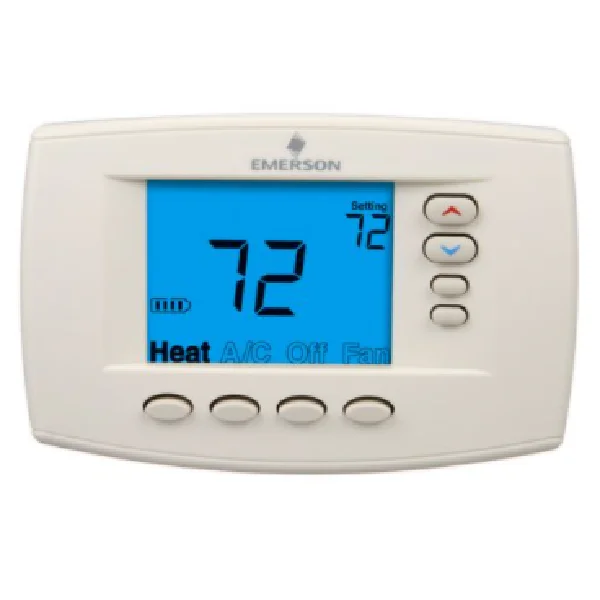

Emerson 1F95EZ-0671 Blue™ Series 6″ Thermostat

Features:

• Universal models quickly configure for single stage, multi-stage or heat pump
• Heat pump dual fuel option (with or without outdoor sensor) eliminates the need for a fossil fuel kit on selected models
• Easy Reader model is easy to read and easy to use.
• Commercial offers occupied damper or economizer control and locking cover and subbase
• Keypad lockout and set-point temperature limits

Specifications:

• Program Options – Programmable – Programmable – 7 Day or Non-Programmable
• Program Periods Per Day Options – 4, 2, None
• Style – Horizontal
• Typical Applications – Gas/Oil/Electric
• Terminals – RC, RH, C, W/E, W2, Y, Y2, O/B, G, L, 6,
• 3-Wire Zone Valve Connections – Yes
• Millivolt Compatible – Yes
• Economizer Connections – No
• Humidity Control – No
• Heat Pump Dual Fuel Control – Yes, No Sensor Required
• Heat Pump Auxiliary Lockout Control – Outdoor Sensor Option – None
• Remote Sensor Options – None
• Power Source – Battery, Hardwire, Power Stealing
• Auto Changeover (Heat/Cool) – No
• Fan Option – Auto, On
• Filter Change Reminder – Yes
• Energy Mgt. Recovery/Early Start – Yes
• Keypad Lockout – No
• Set-Point Temperature Limits – Yes
• Display Type – 6 square in
• Blacklight – Key Press or Continuous with Common Wire
• Voltage – 20 to 30 Vac 50/60 Hz
• Amp Rating – 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
• Set-Point Range – 45 to 99°F (7 to 37°C)
