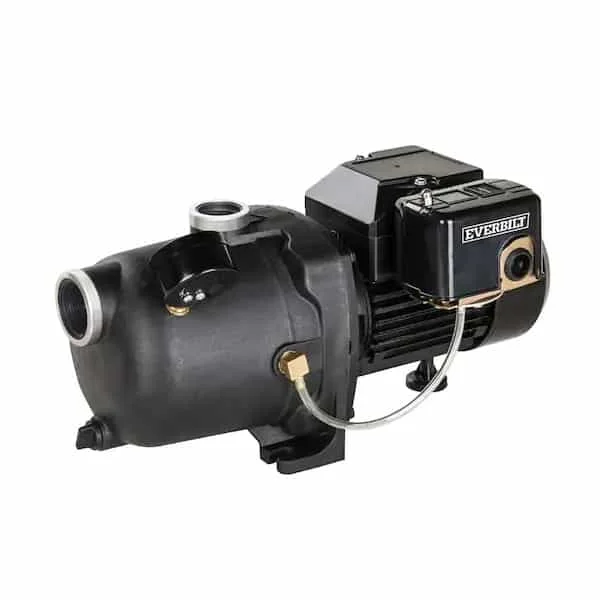

Keep the clean water flowing into your home, cabin or farm, with the3/4 HP Shallow Well Jet Pump. The pump housing is constructed of fiberglass-reinforced thermoplastic, which is both light in weight and corrosion-resistant. The pump delivers water at a flow rate of 552 GPH at 0 ft. of lift. The motor is safeguarded by an auto reset thermal overload protector to prevent overheating. It is pre-wired for 115/230 Volt operation, factory preset at 230V. The pump comes ready to install. 1 Year warranty.
- Designed to pump water from a shallow well up to 25″ deep
- Self-priming after pump housing is initially filled
- Lightweight construction is convenient for moving and installing the pump
- Built-in switch easily converts the power supply from 230V to 115V
- Fan-cooled motor extends the life of the pump
- Certified to both NSF/ANSI CAN 61 Standard for Safe Drinking Water and NSF/ANSI 372 Lead-Free Standard
- Comes with a 30/50 pressure switch and pre-installed pressure gauge
- 1″ NPT Suction and Discharge
- Typical Applications: homes, cabins or farms on private wells; low-flow, small-scale sprinkler systems
Specifications
| Model | J200A3 |
| Amperage (amps) | 8 A |
| Discharge Flow 0 ft. @ 40 PSI (gallons/hour) | 552 GPH |
| Discharge Flow 25 ft. @ 40 PSI (gallons/hour) | 360 GPH |
| Gallons Per Minute (GPM) | 9.2 |
| Housing Material | Thermoplastic |
| Inlet Connection | Threaded female |
| Maximum Horsepower (HP) | 3/4 HP |
| Maximum Working Temperature (F) | 95°F |
| Number of Impellers | 1 |
| Power Type Required | AC |
| Cord Length (ft.) | 0 ft |
| Features | No Additional Features |
| Head Pressure (ft.) | 150 ft. |
| Impeller Material | Thermoplastic |
| Included | No Additional Items Included |
| Jet Pump Product Type | Shallow Well |
| MPN | J200A3 |
| Maximum Pressure (PSI) | 65 PSI |
| Minimum working temperature (F) | 35°F |
| Outlet Connection | Threaded female |
| Product Depth (in.) | 7.87 in. |
| Product Height (in.) | 8.5 in. |
| Product Width (in.) | 15.16 in. |
| Voltage | 115v, 230v |
