JP30S-CI Cast Iron Shallow Well Jet Pump, 3 HP, 230V

Description

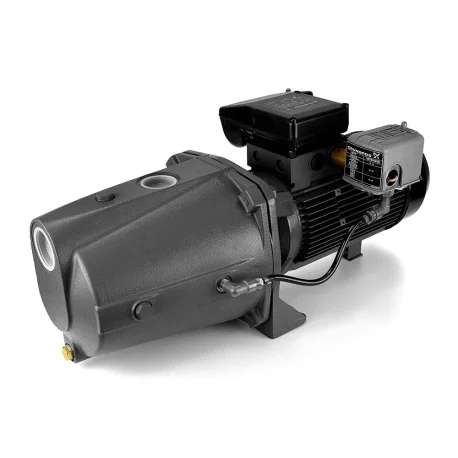

Grundfos JP30S-CI (97855095) is a 3HP 230V Cast Iron Shallow Well Jet Pump

Features:

• Rugged cast iron construction
• End suction, top discharge arrangement
• Technopolymer impeller
• Built-in ejector complete with clean-out port to clear blockages from nozzle
• Convenient priming plug for ease of priming and air elimination
• Ceramic-carbon bellows mechanical seal ensures trouble-free operation

Technical Specifications:

• Max. flow, GPM: 52
• Max. pump head: 170ft
• Max. working pressure: 116 PSI
• Motor power: 3HP
• Fluid temp range: 32 – 95F
• Max. lift: 25ft
• Max. ambient temp: 104F
• Factory pressure switch setting: 40/60 PSI
• Storage temp: 14 – 104F
• Relative humidity: 95%
• Max. starts per hour: 20
