Description

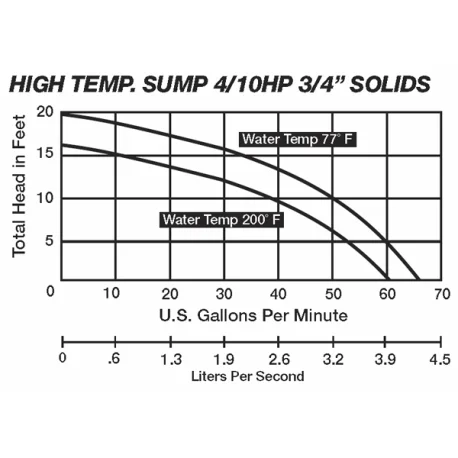

The Liberty HT41M-2 Pump is a 4/10HP, high temperature, manual submersible sump pump. This Liberty sump pump comes with a 25-ft. power cord and can handle liquid temperatures up to 200 degrees F. This high temperature, manual submersible sump pump can handle solids up 3/4″ and has a 1-1/2″ FNPT discharge. It is a manual sump pump and has no switch. This sump pump has a shut-off head of 16′ at 200F water temperature and 20′ at 77F.
The Liberty HT41M-2 high temperature sump pumps can a reach a maximum flow of 59 GPM. The Liberty HT41M-2 sump pump is designed for hot-water applications, such as boiler blow-down pits, condensate pits and high temperature water transfer. This Liberty sump pump also has cast iron construction with all stainless and brass fasteners, and a stainless steel rotor shaft that provides ultimate performance and reliability.
Features:
- Vortex impeller, made of high temperature engineered thermoplastic, permits passage of solids without clogging
- Cast iron construction with all stainless and brass fasteners
- 416 stainless steel rotor shaft
- Oil-filled, thermally protected motor
- Permanently lubricated bearings
- Unitized shaft seal
- 25′ U.L. approved power cord with quick disconnect design
- 1-1/2″ FNPT discharge
Technical Specifications:
- Horsepower: 4/10 HP
- Automatic: No
- Discharge: 1 1/2″ FNPT
- Solids Handling: 3/4″
- Voltage: 115V
- Phase: 1
- Full load amps: 12
- Locked rotor amps: 23
- Thermal overload temp: 302F
- Stator winding class: F
- Cord lenth: 25′
- Weight: 38 lbs
- Height: 9.6″
- Major Width: 9.8″
- Maximum fluid temperature: 200F
Warranty:
3 years manufacturer’s warranty
