MI 301, Grundfos GO Universal Remote Pump Control

Description

MI 301 remote creates a communications bridge between select Grundfos pumps or control modules and a common Android or iOS smartphone via standard Bluetooth connection. Has a built-in Li-Ion rechargeable battery and comes with USB cord, charge and adapters.

Compatible pump series: MAGNA, CRE, CRIE, CRKE, CRNE, CME, MTRE, SPKE, TPE, TPED

Compatible control series: CU 300, CU 301, CU 321, CU 331, IO351, MP204 & Multi-E.

Features:

• Suitable for all Grundfos pumps which support Grundfos GO app
• Universal compatibility with Apple and Android phones
• Creates for a Bluetooth wireless interface between the pump and phone, whith access to settings, usage data, alarms/warnings, reports, diagnostics & more
• Compatible with CU 300, CU 301, IO 351 control boxes and all pumps with IR or radio communication

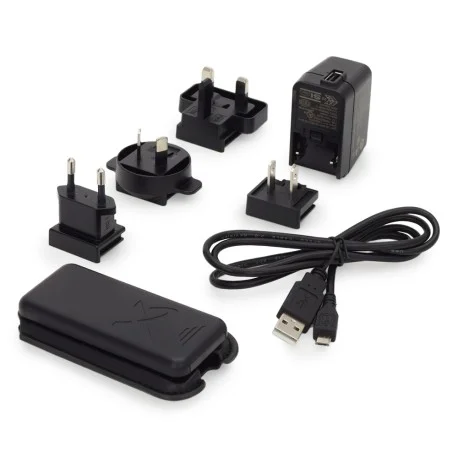

• Includes MI 301 control, battery chager, USB Cable, and rechargeable Li-on battery

Technical Specifications:

• Electrical Data: 30 mA (Max. Current Consumption)
• IR Communication: 12° (Transmission Angle), min. 2m (Range)
• Radio Communication: up to 30m (Range), 0 dBm (Max. Transmit Power)
• Bluetooth Low Energy: up to 10m (Range), 5 dBm (Max. Transmit Power)
• Ambient Temperature Range: -20°C – 70°C
• Operating Time: 8 hours
• Charging Time: 5 hours
• Enclosure Class: IP 40

Warranty:
30 months from the date of manufacture / 24 months from date of installation
