About This Product

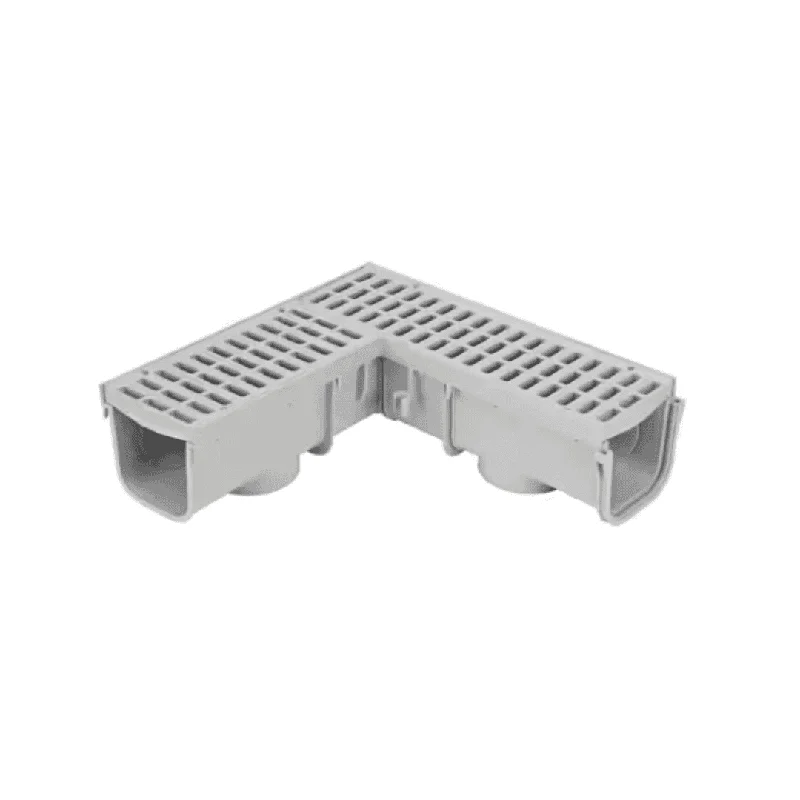

Add a 90° turn to your deep-profile 5 in. channel drain layout without cutting a straight drain or grate to create an angled corner. This 90° elbow and grate connects easily with built-in interlocking joints and works with compatible 5 in. deep-profile channel drain systems. It helps collect and direct moderate surface water from driveways, patios, courtyards, walkways, and sports areas into drain pipes for proper water release. The channel is made from polypropylene, and the grate is made from high-density polyethylene with UV inhibitors for outdoor durability.
Highlights
• 90° turn design – Adds a left or right angle to a 5 in. channel drainage system layout
• Surface water control – Helps capture moderate water flow from driveways, patios, courtyards, walkways, and sports facilities
• Compatible connection – Connects to 5 in. deep-profile channel drain systems with a coupling
• Drainage capacity – Provides 23.5 sq. in. per linear ft. open surface area and 72 GPM per ft. flow rate
• Medium-duty rating – Suitable for properly installed medium-duty pneumatic tire traffic, autos, and light trucks at speeds under 20 mph
• Custom layout support – 90° elbow and removable grate make it easier to adjust the drain layout
• Light gray finish – Designed in a neutral light gray color
• Included piece – Comes with one 5 in. channel drain 90° elbow and removable drain grate
• Water direction – Helps collect and guide water to drain pipes for downstream release
• Removable grate – Allows easy debris cleaning and maintenance
• Durable materials – Polypropylene channel and high-density polyethylene grate are treated with UV inhibitors to help resist fading and cracking
• System compatibility – Works with matching 5 in. channel drains and outlets
• Drainage options – Can be used with pop-up emitters, dry wells, or gravel-free drain systems to manage collected water
• Runoff management – Helps reduce excess surface runoff that can contribute to erosion, pollution, and flooding
Specifications
| Max. Compatible Pipe Size (In.) | 4 in. |
| Min. Compatible Pipe Size (In.) | 3 in. |
| Product Depth (in.) | 17 in. |
| Product Length (in.) | 4.75 in. |
| Product Width (in.) | 16.312 in. |
| Color/Finish | Light Gray |
| Compatible Area of Use | Driveway, Patio, Pool Deck, Walkways |
| Material | HDPE (High Density Polyethylene) |
| Maximum Working Temperature (F) | 140°F |
| Minimum working temperature (F) | 30°F |
| Pack Size | 1 |
| Pipe or Fitting Product Type | Accessory |
| Product Weight (lb.) | 3.60 lb. |
| Returnable | 30-Day |
| Brand | NDS |
| GTIN | 052063808611 |
| Size | 5 in. |
