Description

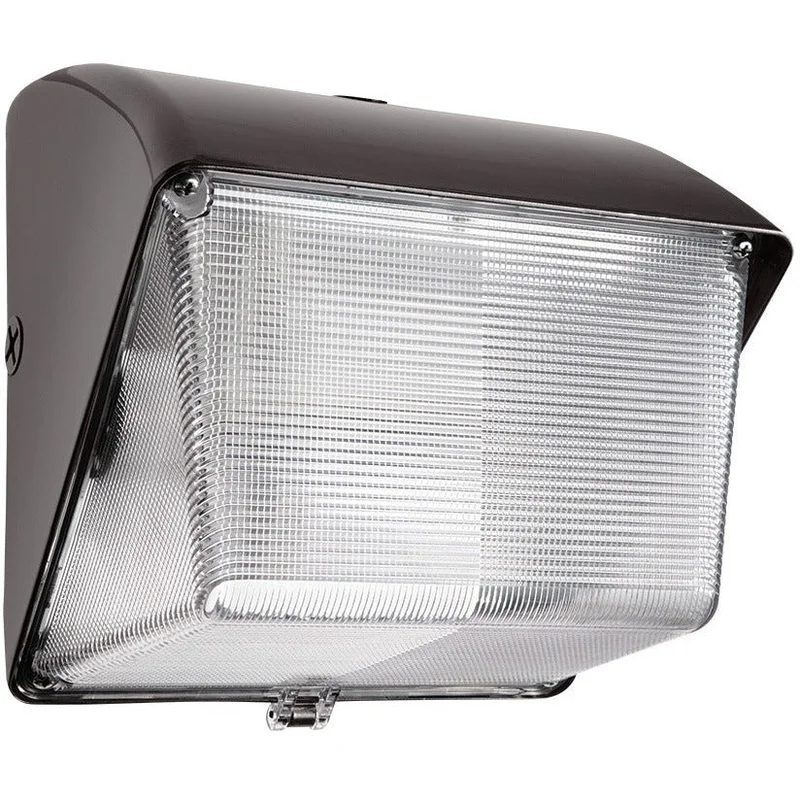

Compact Wallpack. UV stabilized, vandal resistant prismatic polycarbonate refractor. Lamp supplied.
Color: Bronze
Weight: 5.7 lbs
Lamp Info
- Type: 42W Triple
- Watts: 42W
- Hours: 12,000
- Lamp Lumens: 3,200
- Efficacy: 70 LPW
Ballast Info
- Type: Elec HPF QT
- 120V: 0.38A
- 208V: 0.3A
- 240V: 0.2A
- 277V: 0.17A
- Input Watts: 46W
- Efficiency: 91%
Technical Specifications
Listings
- UL Listing: Suitable for wet locations. HID fixtures can be wired with 90°C supply wiring if supply wires are routed 3″ away from the ballast.
Construction
- Housing: Die cast aluminum, 1/2″ NPS tapped top, both sides and back for conduit or photocontrol. Hinged refractor. Continuous one piece silicone rubber gasket.
- Reflector: Semi-Specular anodized aluminum, removable for installation. Symmetrical light pattern maximizes distance between fixtures.
- Finish: Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals.
- Conduit Openings: Top, side and back.
- Template: Drilling template for easy wall box mounting.
- Ballast Minimum Starting Temperature: 0°F.
Other
- Patents: Pat. D440,683.
