Description
[shortdesc]
| Operation Mode | Manual |
| Voltage | 115V |
| Horse Power | 1/2 HP |
| MPN | HS2.4S |
[/shortdesc]
Product

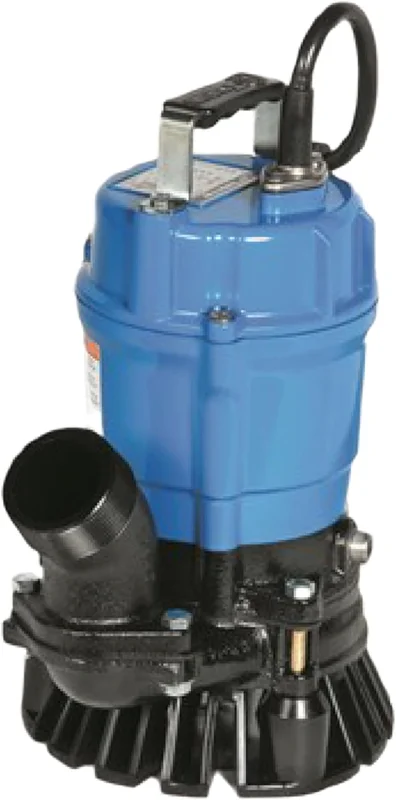

The TSURUMI HS2.4S is a durable, semi-vortex submersible wastewater pump equipped with an agitator for efficient handling of sand and stringy debris. Its robust cast iron casing, urethane rubber impeller, and oil-lubricated mechanical seals ensure long-lasting performance in various dewatering applications. Designed for site drainage, sediment removal, and wastewater handling, the HS2.4S is capable of continuous operation in tough environments. Its lightweight design, thermal protection, and compact construction make it an exceptional solution for residential, commercial, and industrial use.
Top Features
- Semi-Vortex Impeller with Agitator: Suspends and pumps solids, sand, and stringy materials efficiently.
- Heavy-Duty Build: Cast iron casing and urethane-rubber impeller ensure durability in harsh conditions.
- Thermal Motor Protection: Prevents motor damage during dry runs or overloading.
- High Solids Handling: Capable of handling solids up to 0.276” (7 mm) with clog-free performance.
- Lightweight and Easy to Handle: Compact design facilitates portability for multiple applications.
| Category | Details |
|---|---|
| Model | HS2.4S |
| Type | Semi-Vortex Submersible Pump with Agitator |
| Horsepower | 1/2 HP (0.40 kW) |
| Capacity | 13.2 ~ 61.0 GPM (0.05 ~ 0.23 m³/min) |
| Total Head | 13.1 ~ 62.0 ft (4.0 ~ 18.9 m) |
| Maximum Water Temperature | 104°F (40°C) |
| Solids Handling Size | 0.276” (7 mm) |
| Casing Material | Cast Iron |
| Impeller Material | Urethane Rubber |
| Shaft Material | 403 Stainless Steel |
| Seal Material | Silicon Carbide Mechanical Seals |
| Motor Type | Air-Filled, 3600 RPM |
| Voltage | 115/230V, Single Phase |
| Insulation Class | Class E |
| Thermal Protection | Built-in |
| Discharge Size | 2” NPT (50 mm) |
| Weight | 25 lbs (11.3 kg) |
| Dimensions (L x W x H) | 12 15/16” x 8 1/8” x 10 1/16” (328 x 207 x 255 mm) |
| Power Cable | 32 ft (10 m) |
| Optional Accessories |
|
===
Info & Guides
| User Manual | Download |
| Specification Sheet | Download |
| Part List | Download |
