Description

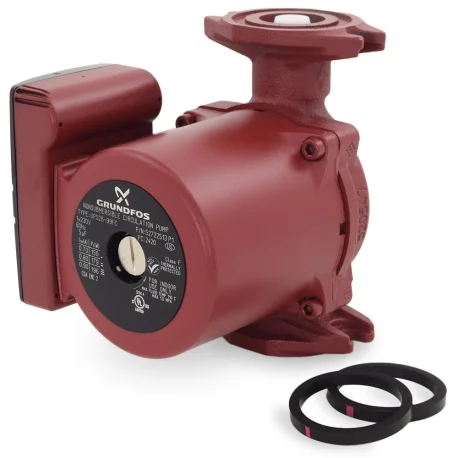

Grundfos UPS26-99FC is a 230V 3-speed cast iron circulator pump with check valve – for heating and cooling applications.
Cross-References:
- Taco: 0011, 0014 @ Med Speed; 0013 @ High Speed
- B&G: LR-15BWR @ Low speed; Series 100, PL-30, PR, NRF-36, Sp-1, NRF-45 Sp-1 @ Med speed; NRF-36 Sp-2, NRF-45 Sp-2 @ High speed
- Armstrong: Astro 30(B) @ Low speed; Astro 50(B), H41 @ Med speed; E7(B) @ High speed
Features:
- 3-speed switch (Lo/Med/Hi) provides versatility for various applications
- Includes integral check valve
- Whisper-quiet and maintenace-free operation
- Quick connectivity to terminals for easy installation
- Power LED indicator
- Lubricated bearings
- Suitable for up to pumping up to 50/50 glycol & water mix solution
- Made in the USA
- cULus Listed
Technical Specifications:
- Casing: Cast Iron
- Circulator Pump Type: 3-Speed
- Connections: Flanged (GF15/26)
- Circulator Height (Flange to Flange): 6-1/2″
- Electrical Specs: 230V, 60 Hz, 196W max, 0.9 Amps max; 400V Capacitor
- Head Range: 0-28.87 ft
- Flow Range: 0-33 GPM
- Operating Temperature Range: 36°F – 230°F
- Max Operating Pressure: 145 psi
- Sound Pressure Level: 40 dB
- Dimensions (Depth x Width x Height): 5.98″ x 5.20″ x 6.50″
- Weight (lbs): 10.68 lbs
Warranty:
30 months from the date of manufacture / 24 months from the date of retail purchase
