About This Product

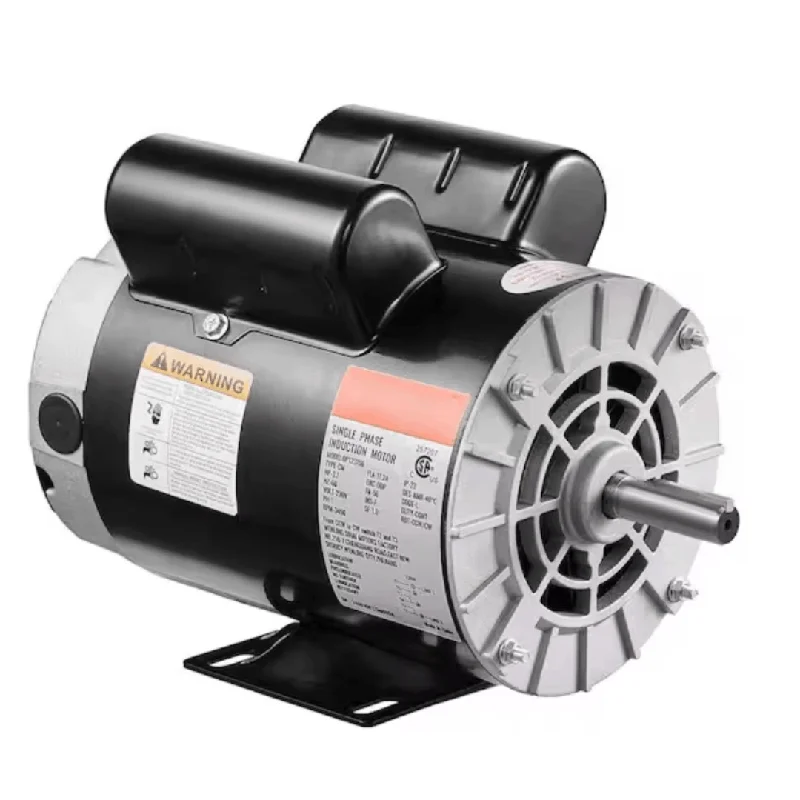

Power your air compressor with efficiency and strength using the VEVOR 3.7HP motor. Operating at 230V with a 17.2A current, this robust motor features a 56 frame, 1.88 in. shaft length, and a 5/8 in. keyed shaft. Its dual rotation capability (CW/CCW) offers flexible installation, making it an excellent fit for air compressors in both industrial and commercial settings.
Highlights
- High Performance: 3.7HP, 3450 RPM, single-phase, 230V, 60Hz, 17.2A, with a service factor of 1.0
- Durable Frame: 56 frame with a 5/8 in. keyed shaft, 1.88 in. shaft length, and 0.188 in. keyway
- Open Drip-Proof Design: Ideal for clean, dry environments; constructed from high-quality steel for enhanced durability and engine protection
- Reversible Rotation: Supports both clockwise (CW) and counterclockwise (CCW) operation, allowing for flexible wiring
- Built for Longevity: Features a sturdy steel housing and efficient heat dissipation for extended use
Specifications:
Voltage: 230V | Frequency: 60Hz | Current: 17.2A
Rotation Speed: 3450 RPM | Service Factor: 1.0
Enclosure: ODP | Frame Size: 56
Shaft Diameter: 5/8 in. | Shaft Length: 1.88 in.
Keyway Size: 0.188 in. | Net Weight: 34.3 lbs. (15.55 kg)
Package Includes:
1 x Air Compressor Motor
Specifications
| Product Depth (in.) | 12.4 in. |
| Product Width (in.) | 6.69 in. |
| Amperage (A) | 17.2 A |
| Product Weight (lb.) | 34.61 lb. |
| Voltage (V) | 230 V |
| Brand | VEVOR |
| GTIN | 840349903354 |
| Size | 5/8 in. |
