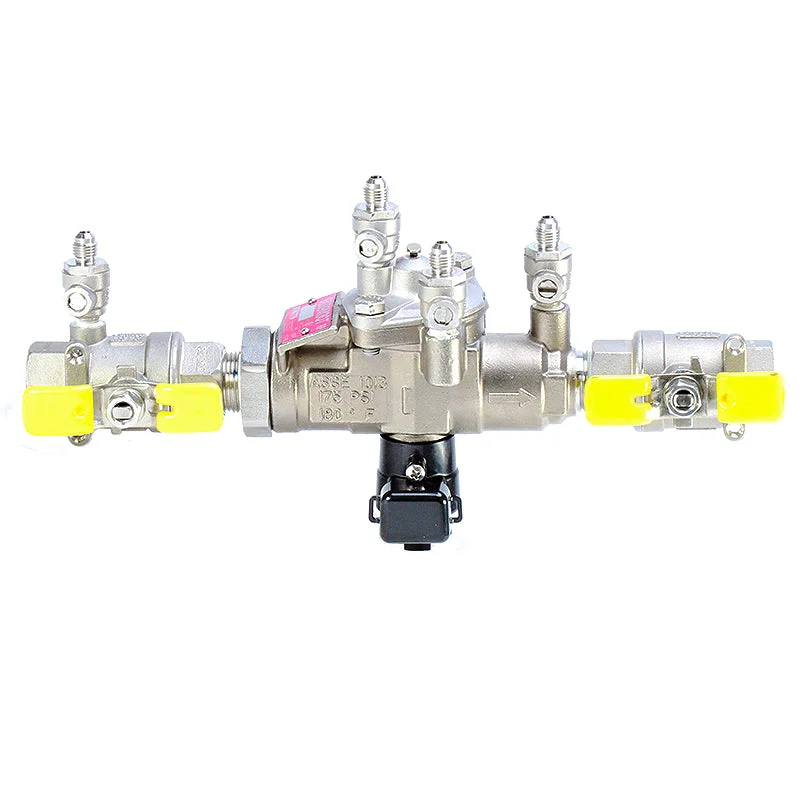

WATTS 0122653 LF009-QT-FDA 3″ IP REDUCED PRESSURE VALVE WITH EPOXY STRAINER

Description

WATTS 0122653 LF009-QT-FDA 3 IP REDUCED PRESSURE VALVE WITH EPOXY STRAINER

WATTS® Reduced Pressure Zone Assembly, Inline Pattern, Series: LF009, 3 in Nominal, FNPT, 175 psi, 110 deg F, Quarter-Turn Ball Valve, Reduced Pressure Zone Backflow, Full Port, Media: Potable Water, Cast Iron Body, Epoxy Coated

This 3 in lead free reduced pressure zone assembly is designed to prevent the flow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and for contaminants at the service line entrance. This assembly consists of an epoxy coated cast iron body construction, NPT end connections, FDA epoxy coated quarter turn ball valve shutoffs with tee handles, top mounted test cocks, two in-line independent check valves, captured springs, and replaceable check seats with an internal relief valve for reduced space requirements.
