Description

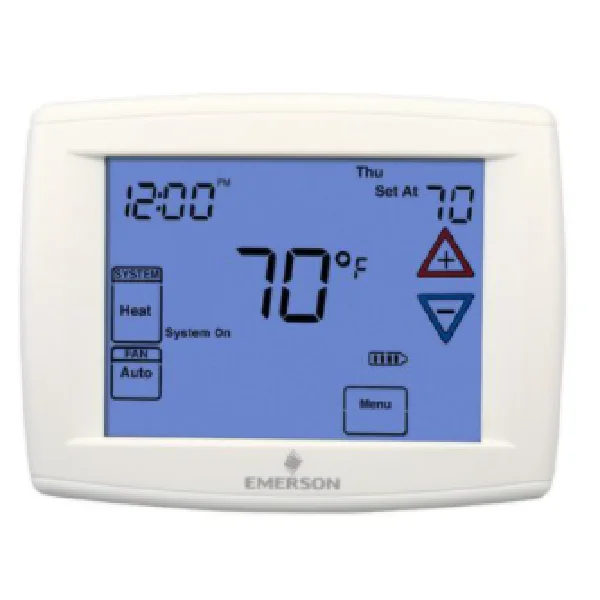

Emerson 1F95-1291 Blue Series 12″ Touchscreen Thermostat

Universal models quickly configure for single stage, multi-stage or heat pump
Heat pump dual fuel option (with or without outdoor sensor) eliminates the need for a fossil fuel kit
Humidification/dehumidification control
Commercial model offers occupied damper or economizer control
Keypad lockout and set-point temperature limits

Program Options – Programmable – 7 Day, 5+1+1 Day or Non-Programmable
Program Periods Per Day Options – 4, 2, None
Stages Heat/Cool – Universal – Single Stage 1H/1C, Multi-Stage 2H/2C, Heat Pump 4H/2C
Style – Horizontal
Typical Applications – Gas/Oil/Electric
Terminals – RC, RH, C, W/E, W2, Y, Y2, O/B, G, L, 6, +, S, -, DHM, HM
3-Wire Zone Valve Connections – Yes
Millivolt Compatible – Yes
Economizer Connections – No
Humidity Control – Yes, Humidification and Dehumidification Option
Heat Pump Dual Fuel Control – Yes, Logic Option – No Sensor Required or Outdoor Sensor Option – Outdoor Sensor Provides Outdoor Temperature Setting to Lockout the Heat Pump and Switch to Gas Heat
Heat Pump Auxiliary Lockout Control – Outdoor Sensor Option – Outdoor Sensor Provides Outdoor Temperature Setting to Lockout Auxiliary Heat
Remote Sensor Options – 1 Indoor or Outdoor
Power Source – Battery, Hardwire, Power Stealing
Auto Changeover (Heat/Cool) – Yes
Fan Option – Auto, On, Programmable Fan or Comfort Circulating Fan
Filter Change Reminder – Yes
Energy Mgt. Recovery/Early Start – Yes
Keypad Lockout – Total or Partial
Set-Point Temperature Limits – Yes
Display Type – 12 square in
Blacklight – Key Press or Continuous with Common Wire
Voltage – 20 to 30 Vac 50/60 Hz
Amp Rating – 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
Set-Point Range – 45 to 99°F (7 to 37°C)
