Description

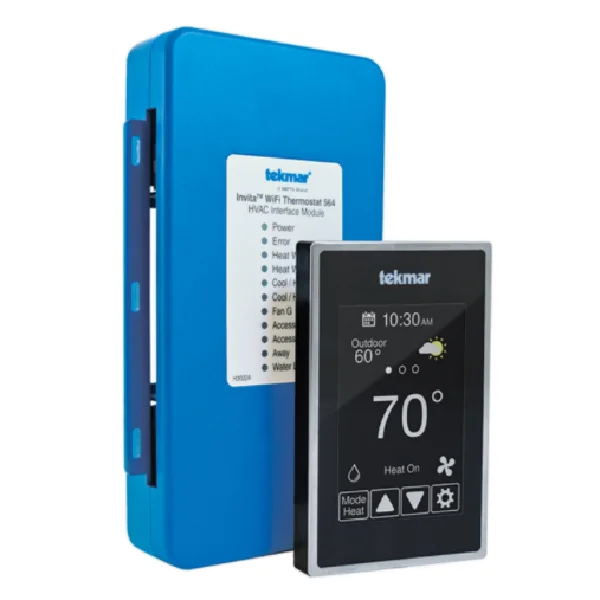

Tekmar 564B Thermostat Black Invita® WiFi

Features:

• Voice control with Google Assistant or Amazon Alexa
• Water leak notification when connected to Watts FloodSafe Water Detector Shutoff
• Ventilation
• Slim profile with multiple display color options
• Programmable schedule with early start, energy monitoring
• Mobile and web app, warning email notifications
• Weather, outdoor temperature
• Relative humidity control

Specifications:

• Packaged Weight – 1.3lb
• Dimensions – : 4-1/2″ H x 2-3/4″ W x 9/16″ D
• Enclosure – Display: White or Black PVC plastic, NEMA type 1 HVAC Interface Module: Blue PVC plastic, NEMA type 1
• Approvals – Meets Class B: ICES & FCC Part 15
• Ambient Conditions – Display: -4 to 122°F (-20 to 50°C), RH ≤90% non-condensing HVAC Interface Module: -40 to 122°F (-40 to 50°C), RH ≤90% noncondensing, outdoor use requires mounting in a NEMA 3 enclosure
• Power Supply – 21 to 30 V (ac), 6 VA, Class 2
• Relay – 30V(ac), 2 A, Class 2 Circuits
• Humidity sensor – 0 to 90% ±4% RH
• Temperature sensor – NTC thermistor, 10 kΩ @ 77°F (25°C ±0.2°C) ß=3892
• Optional – tekmar type # 070, 072, 073, 076, 077, 079, 084, 086, 087
• Communications – WiFi 802.11n, 2.4 GHz, WPA2 encryption
• Mobile App – Apple iOS 11 or higher, Android 5 or higher
• Warranty – Limited 3 Year Warranty

Installation Manual
